• 09A02 FUEL TANK, 1300

Double click on above image to view full picture

More Views

•

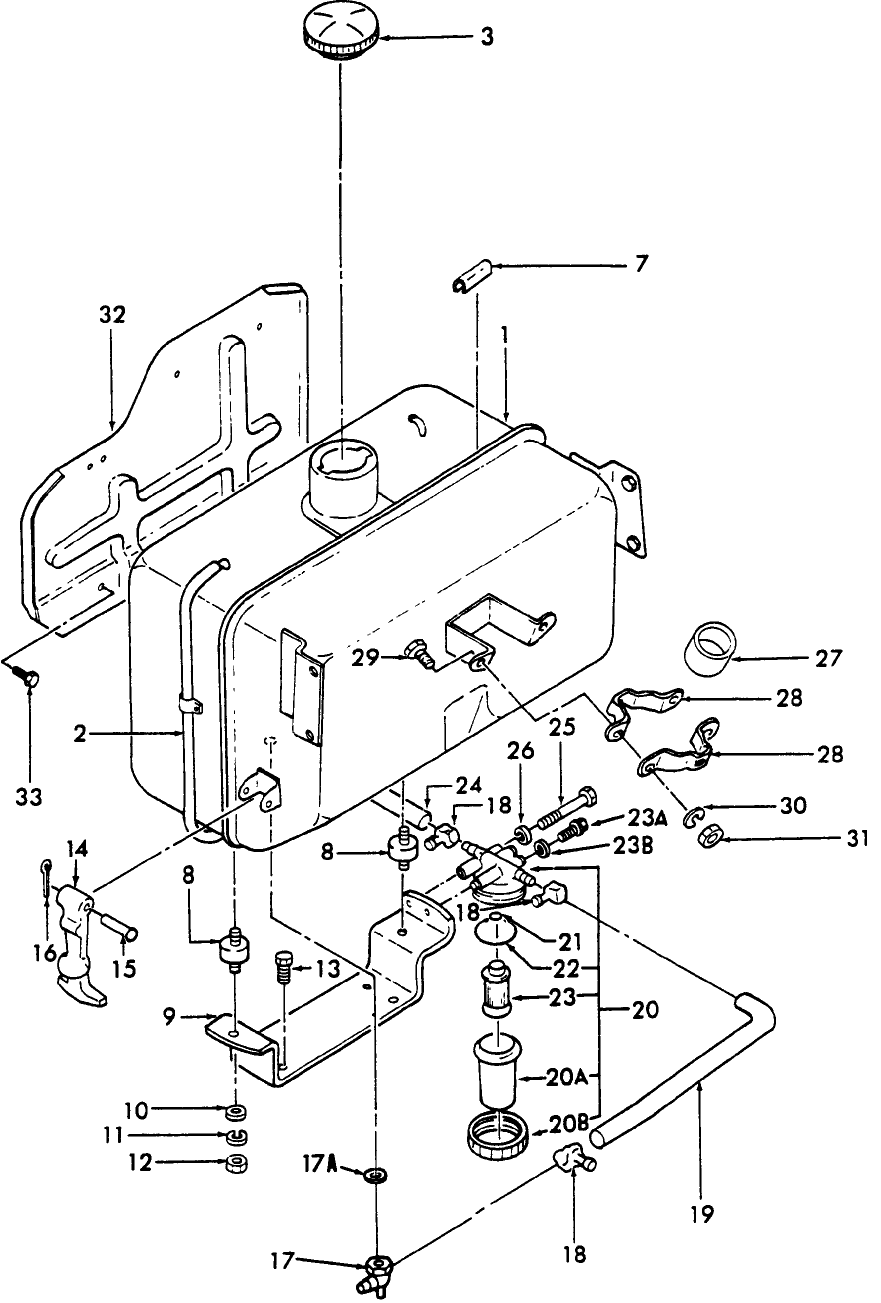

09A02 FUEL TANK, 1300

Key	Product Name	Price	Qty
1	TANK	$0.00	Out of stock.
2	TUBE FUEL	$31.80
3	COVER	$85.75	Out of stock.
3	CAP	$64.25	Out of stock.
7	PAD, RUBBER	$0.00	Out of stock.
8	BUSHING RUBBER	$57.90
9	HOLDER	$0.00	Out of stock.
10	WASHER (PKG of 20)	$3.60	Out of stock.
11	WASHER LOCK (PKG of 25)	$6.50
12	NUT (PKG of 20)	$11.60
13	BOLT	$14.60
14	HOOK	$28.00
15	PIN, SPLIT (COTTER)	$6.83
16	PROCURE LOCALLY	$0.00	Out of stock.
17	DRAINCOCK	$46.00
17A	WASHER SEALING	$9.25
18	CLAMP, HOSE (PKG of 5)	$15.40	Out of stock.
19	TUBE RIGID	$39.50
20	FILTER ELEMENT	$16.56
20A	CUP	$17.00	Out of stock.
20B	NUT	$9.91	Out of stock.
21	O-RING (PKG of 10)	$5.30
22	O-RING (PKG of 5)	$14.00
23	FILTER, FUEL	$8.07	Out of stock.
23A	SCREW	$24.07	Out of stock.
23B	WASHER SEALING	$8.15
25	BOLT (PKG of 2)	$2.80
26	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
27	SUPPORT	$0.00	Out of stock.
28	CLAMP	$0.00	Out of stock.
29	BOLT (PKG of 10)	$7.40
31	NUT	$0.00	Out of stock.
32	PLATE	$0.00	Out of stock.
33	SCREW CAPTIVE WASHE (PKG of 5)	$16.50	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Tank Assy., Start Year: 01/01/1979

Product Description

Tank Assy., Start Year: 01/01/1979

Additional Information

Part Number	1300-34566
Section	Fuel System
